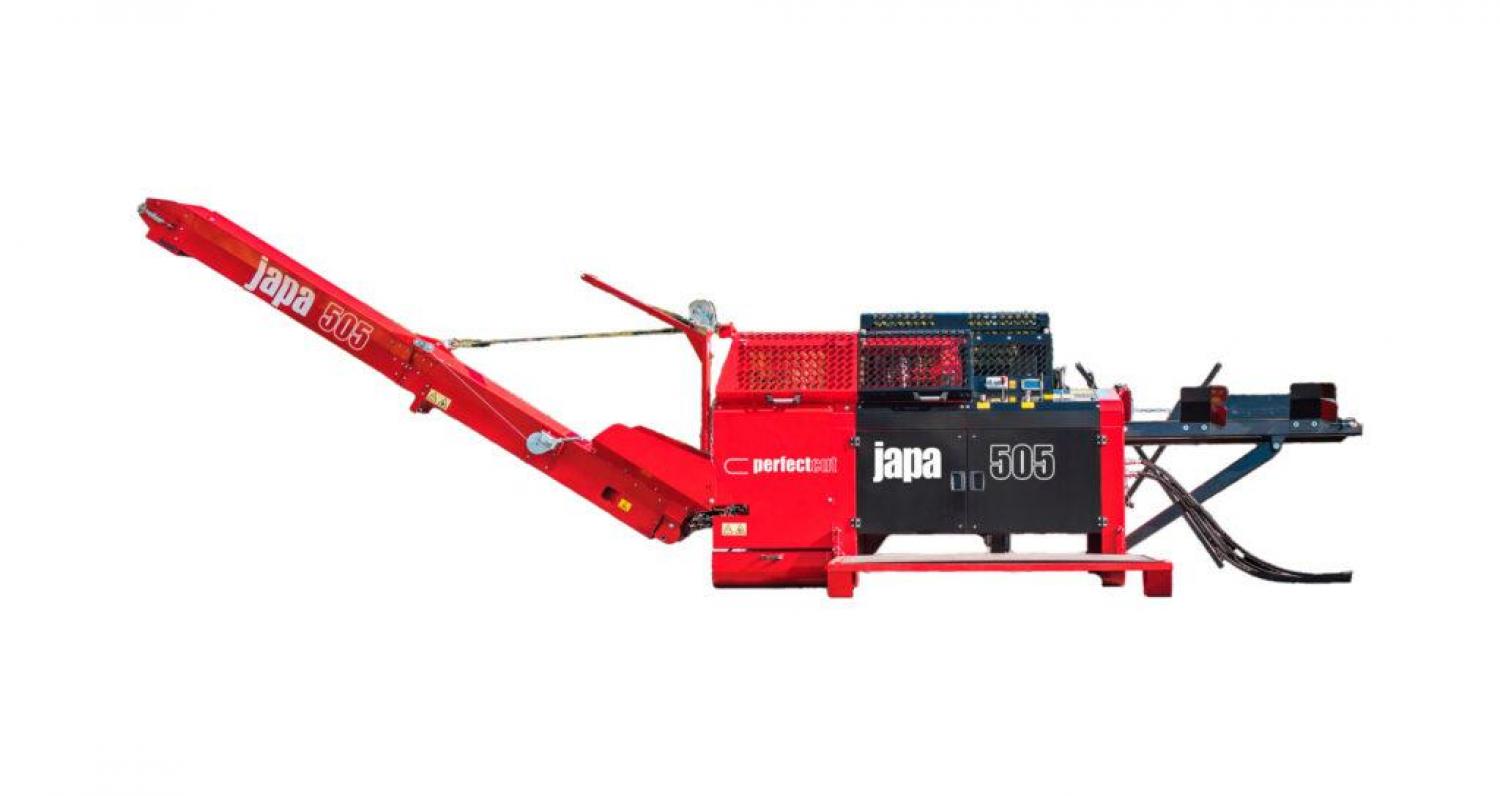

Japa 505 Pro Firewood Processor
  • Features:
  • Electric over hydraulic joystick controlled with EASY one hand operation of infeed / cut / split functions
  • Perfect Cut technology
  • Hydraulic powered infeed belt with forward and reverse
  • Adjustable hydraulic log stop – stops infeed belt when desired cut length is reached
  • Fully guarded saw / split chamber – saw and splitter operation halts if guard is open
  • Patented Perfect Split and Perfect Clean systems are both standard equipment on the 505 Pro
  • Three position height adjustable 6-way Perfect Split knife / box wedge included
  • Hydraulic joystick controlled adjustable traditional 6 way knife included
  • 4-way, 8-way, and 12-way traditional wedges optional
  • Speed control for outfeed conveyor included
  • Hydraulic angle / slew adjust for outfeed conveyor included
  • Overhead powered roller clamp for infeed
  • 3 point hitch connections* and pallet fork pockets for mobility
  • *3 point not accessible on Kubota powered model*
  • 1 year warranty on machine
  • 2-3 year warranty on Kubota diesel engine option
  • Tech Specs:
  • PTO powered version
  • 540 RPM PTO shaft included – to be ran at 400 RPM
  • 45+ PTO horsepower required to efficiently saw and split simultaneously
  • Electric powered version
  • 480V 3 phase electric required
  • 15kW motor – 40A plus circuit required
  • Kubota V1505 diesel engine powered version
  • 33 horsepower Kubota V1505 turbocharged 4 cylinder engine
  • Front panel controls of engine including digital display
  • 18 gallon aluminum diesel fuel tank
  • Max input diameter 20 inch
  • Max input lengths of 8 feet OR up to 16 feet with an optional log rack
  • Max cut length of 20.5 inch long
  • Joystick control of infeed / cut / split functions
  • Forward AND reverse of infeed belt
  • Perfect Cut technology
  • 21″ .404 saw bar with auto chain tensioning
  • Electric bar oil pump
  • Hold one button to have saw cut without moving joystic
  • Adjustable split size
  • 6 way hydraulically adjustable traditional knife included
  • Other optional knife information coming soon
  • Perfect Split with automated resplitting included
  • 6 way fixed position Perfect Split / box wedge knife included
  • Optional large 6-way Perfect Split / box wedge knife available
  • Perfect Clean system included
  • Includes Perfect Clean shaker system
  • Includes rear discharge conveyor for chaff / debris
  • Includes operator terrace / platform and machine risers
  • 4.2M/13.8′ hydraulic outfeed conveyor included
  • Mechanical pivot with 5 positions
  • Speed control regulator included with 505 Pro
Models - Japa 505 Pro Firewood Processor
505 Pro TR - Powered by tractor PTO
$86,999.00   Contact us for current production lead times. Add to Cart Add to Cart: 505 Pro TR - Powered by tractor PTO
505 TRE - Powered by tractor PTO or 480V 3 phase
$93,999.00   Contact us for current production lead times. Add to Cart Add to Cart: 505 TRE - Powered by tractor PTO or 480V 3 phase
505 Diesel - Powered by Kubota V1505 33HP diesel
$114,999.00   Contact us for current production lead times. Add to Cart Add to Cart: 505 Diesel - Powered by Kubota V1505 33HP diesel

Since 1977, Japa has been manufacturing efficient and powerful firewood processors in Finland. In mid-2025, Japa signed the contract with us to setup Wolfe Ridge as the sole USA importer and distributor of Japa Firewood Processors and accessories. The Japa 505 Pro with Perfect Split can process up to 20 inch diameter, and split up to 20.5 inch lengths. Easy to use with electric over hydraulic joystick control of infeed / cut / split functions, patented Perfect Split and Perfect Clean systems, Perfect Cut, and much more. This machine is offered in three power source configurations: PTO powered (any tractor with a 540 RPM PTO shaft and more than 45 horsepower), 480 volt 3 phase electric, or the Kubota V1505 33HP diesel engine package.

The Japa 505 Pro is extremely easy to operate with one hand joystick control of infeed / sawing / splitting functions. Push the joystick up and to the left to infeed the log, hold the bottom electric trigger and the saw will perform the cut for you, pull the top trigger on the joystick to engage the split cycle – which then cycles forward and back automatically. With included Perfect Split technology in the 505, the machine will continue to re-split automatically until the split chamber is empty. Perfect Cut technology utilizes an automatic chain tensioning 21″ saw barOptional hydraulic log racks are available for this machine – we recommend the 472 3 chain rack for best optimal performance. A 4.2M / 13.8′ powered outfeed conveyor is standard with this machine.

The 505 Pro is the superior choice for full time firewood producers that never want to resplit again! Process up to 20 inch diameter timber quickly – process 3+ full cords per hour with the right logs! For great results in your wood yard every time, choose a Made-in-Finland Japa, offered in the USA by Wolfe Ridge!! *For Perfect Split functionality on a smaller diameter level, see the Japa 405* *MORE INFORMATION AND OPTIONS FOR 505 Pro COMING SOON*

Ask about shipping and delivery options when you place your order.

Payment Terms

Place your order by email or by phone.

Only 20% down payment (due to longer lead times). Balance due just prior to shipping (we will call or email when machine is close to completed).

5% discount for verified US Military service, Police, Fire, and EMT (owner only, must email copy of ID, DD214, or VA card). Payment by check or bank transfer preferred.

Payment by check or bank transfer preferred. There will be a 3% fee added for all credit or debit card payments.
